spacer Kaydon Bearings - slewing ring bearings, turntable bearings
Kaydon Bearings - HS series

Similar in size to the RK series, Kaydon's HS series slewing ring bearings have rectangular cross sections that provide approximately twice the load capacity (moment ratings up to 139,900 ft-lbs) in the same envelope. HS series bearings provide Slewinfinite® solutions for medium- to heavy-duty applications.


spacer spacer
Turntable specifications


No gear
Internal gear
External gear
Mating pinions
Notes & related items



spacer
spacer
Kaydon Bearings - HS turntable 3D

Design features
The internal configuration consists of a rectangular cross section with deep groove gothic arch raceways and maximum ball complement. This results in a four-point contact design that provides exceptional moment, thrust, and radial load capacities.

The HS and RK series share the same pinion, gear, and race core hardness. However, the HS slewing ring features reduced clearance and rectangular sections that provide additional capacity, greater stiffness, and less movement than the RK series. HS slewing ring bearings range in size from 20" to 47" (500 mm to 1,200 mm) OD with a standard cross section. Configurations include non-geared and internal geared (with fittings on the outer diameter), and external geared (fittings on the inner diameter). The gears are Involute Stub designs with 20° pressure angles, manufactured to AGMA Class Q5 and .015" to .025" allowance for backlash.

HS slewing ring bearings feature two fittings for lubrication, spaced 180° apart. Geared races have tapped holes, while non-geared races have through holes. All have integral seals to protect against contamination.

Availability
Kaydon stocks 10 models of HS series bearings, with forgings for the rest in inventory. Mating pinions for geared bearings are also generally available.

Applications
Kaydon's HS slewing ring bearings provide Slewinfinite® solutions for medium- to heavy-duty applications including:

  • Cranes
  • Aerial lifts
  • Digger derricks
  • Chute swivels
  • Lift truck rotators
  • Industrial turntables

Click on the Kaydon part number to view and download 3D models and CAD files. You must login or register before accessing drawings.

spacer

See glossary of symbols

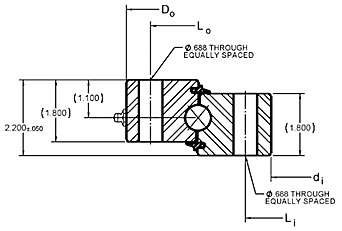

Kaydon Bearings - HS series turntable profile - no gear
No gear
Kaydon
part
number
Outline dimensions & weight Mounting holes Gear data
inv. stub, α = 20°
Moment
rating
Crm
(ft-lbs)
Do
(in)
di
(in)
G
approx.
(lbs)
Outer ring Inner ring
Lo
(in)
no Li
(in)
ni D2
(in)
Pd z2 Fz
(lbs)
HS6-16P1Z 20.400 12.000 103 19.000 8 13.500 12 - - - - 50,500
HS6-21P1Z 25.500 17.000 137 24.000 12 18.500 15 - - - - 72,700
HS6-25P1Z 29.500 21.000 162 28.000 15 22.500 18 - - - - 91,800
HS6-29P1Z 33.400 25.000 186 32.000 15 26.500 18 - - - - 111,900
HS6-33P1Z 37.400 28.830 216 35.750 18 30.500 20 - - - - 128,000
HS6-37P1Z 41.250 32.830 233 39.750 18 34.380 20 - - - - 130,900
HS6-43P1Z 47.180 38.750 269 45.620 20 40.250 24 - - - - 139,900

See glossary of symbols

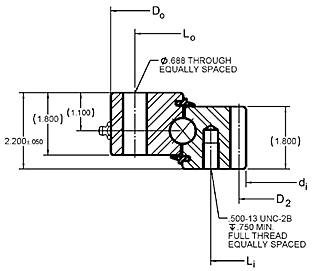

Kaydon Bearings - HS series turntable profile - internal gear
Internal gear
Kaydon
part
number
Outline dimensions & weight Mounting holes Gear data
inv. stub, α = 20°
Moment
rating
Crm
(ft-lbs)
Do
(in)
di
(in)
G
approx.
(lbs)
Outer ring Inner ring
Lo
(in)
no Li
(in)
ni D2
(in)
Pd z2 Fz
(lbs)
HS6-16N1Z 20.400 12.850 92 19.000 8 14.880 16 13.250 4 53 6,084 50,500
HS6-21N1Z 25.500 17.600 117 24.000 12 19.630 20 18.000 4 72 5,842 72,700
HS6-25N1Z 29.500 21.600 148 28.000 15 23.630 24 22.000 4 88 5,719 91,800
HS6-29N1Z 33.400 25.600 171 32.000 15 27.630 28 26.000 4 104 5,634 111,900
HS6-33N1Z 37.400 29.130 205 35.750 18 31.500 30 29.667 3 89 7,617 128,000
HS6-37N1Z 41.250 33.133 226 39.750 18 35.500 32 33.667 3 101 7,531 130,900
HS6-43N1Z 47.180 39.130 253 45.620 20 41.500 36 39.667 3 119 7,437 139,900

See glossary of symbols

Kaydon Bearings - HS series turntable profile - external gear
External gear
Kaydon
part
number
Outline dimensions & weight Mounting holes Gear data
inv. stub, α = 20°
Moment
rating
Crm
(ft-lbs)
Do
(in)
di
(in)
G
approx.
(lbs)
Outer ring Inner ring
Lo
(in)
no Li
(in)
ni D2
(in)
Pd z2 Fz
(lbs)
HS6-16E1Z 19.900 12.000 85 18.000 14 13.500 12 19.500 4 78 4,981 50,500
HS6-21E1Z 25.150 17.000 108 23.250 18 18.500 15 24.750 4 99 5,076 72,700
HS6-25E1Z 29.150 21.000 137 27.250 20 22.500 18 28.750 4 115 5,127 91,800
HS6-29E1Z 32.900 25.000 158 31.000 24 26.500 18 32.500 4 130 5,164 111,900
HS6-33E1Z 37.200 28.830 188 35.000 28 30.500 20 36.667 3 110 6,817 128,000
HS6-37E1Z 41.200 32.830 207 38.880 28 34.380 20 40.667 3 122 6,860 130,900
HS6-43E1Z 46.870 38.750 237 44.630 32 40.250 24 46.333 3 139 6,910 139,900

See glossary of symbols

Kaydon Bearings - RK series turntable profile - mating pinions
Mating pinions
Bearing
part
number
Pinion
part
number
Gear data (α = 20°) Outline dimensions & weight
Tooth
form
z1 Pd
(in)
b1
(in)
L1
(in)
D1
(in)
Do1
(in)
Dr1
(in)
Di1
(in)
w
(in)
G
approx.
(lbs)
HS6-16 thru
HS6-29
39200001
39200002
SD 14
17
4
4
2.000
2.000
2.880
2.880
3.500
4.250
3.900
4.650
2.880
3.630
1.000
1.000
1/4 6.4
10.0
HS6-33 thru
HS6-43
39200003
39200004
SD 14
17
3
3
2.000
2.000
2.880
2.880
4.667
5.667
5.200
6.200
3.880
4.880
1.250
1.250
5/16 11.4
18.3
Tolerances     Ref. ±.015 ±.015 Ref. +.000
-.010
Ref. +.002
-.000


spacer

warning sign

spacer
Notes
Damage to equipment and danger to human life can result from failure to heed the recommendations in the text identified by the warning symbol in Kaydon Catalog 390 where further details and additional considerations can be found.
